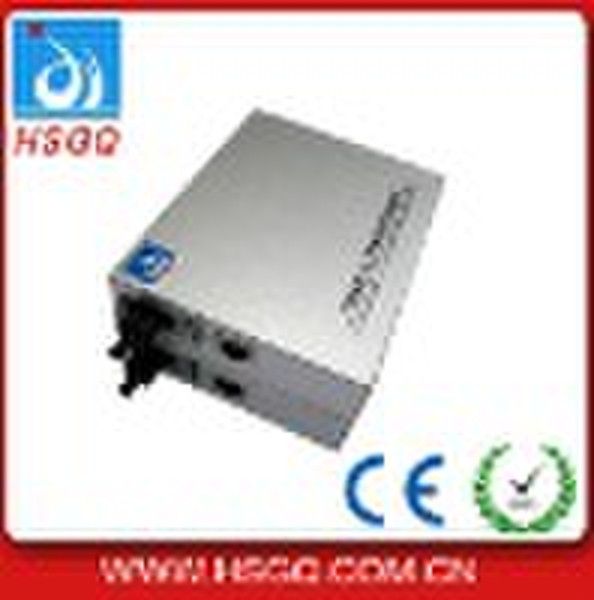

1000M Fiber Media Converter
Jueane Zhou
Contact person
Basic Information
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | HSGQ |
| Model Number | 10/100/1000M Fiber Media Converte... |
1000M Fiber Media Converter 10/100/1000Base Single Mode Simplex Fiber Media converter Features:Fully comply with IEEE802.3 10 Base-T, IEEE802.3u 100Base Tx,IEEE802.3ab 1000Base-Tx, IEEE802.3z 1000 Base Fx standard.Compatible with 3COMs GBIC and SFPAuto-negotiation of 10/100/1000M bps rate and Auto-MDI/MDIX for Tx portWith 100M,1000M,PWR,Tx,Rx,FXL, LED indicators on the front panelSurface Mount TechnologyEasy-to-view LED indicators provides status to easily monitor network activityExcellent optoelectronic module and multilayer circuitensure data transmission stability, long working lifetimeSpecification:>> Ethernet Port: Connector: One RJ45(Female), Rate:10M/100M1000M auto-negotiation Full/Half duplex auto-adaptive ,MDI/MDI-X>> Optical Port: Connector:ST/SC/FC optional Wavelength: 850 nm for multimode 1310nm or 1550nm for singlemodeWorking Temperature: 0-65Storage temperature; -40-70Humidity: 5-90%(non-condensing)Power Supply: External, AC 100V-260V, DC 5V 2A (Inner power supply available upon request)EMI: FCC Class A CE MarkType Discreption Wavelenth nm Transmission Distance Emission PowerdB Loss dB Efiber-2000C Multi-Mode RJ-45/SC 850 500m -4∼-9.5 4.0 Efiber-2000S10 Single Mode RJ-45/SC 1310 10Km -6∼-12 6.0 Efiber-2000S20 Single Mode RJ-45/SC 1310 20Km -3∼-8 13.0 Efiber-2000S50 Single Mode RJ-45/SC 1550 50Km 0∼-6 24.0
Delivery terms and packaging
Packaging Detail: neutral paper box packing Delivery Detail: Within 8 days
Port: shenzhen port
