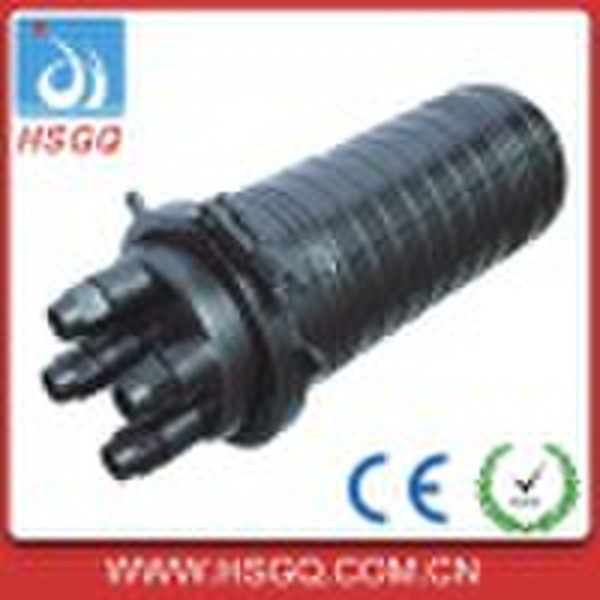

Fiber Enclosure Box

Horizontal Fiber Optical Splice Closures( cap state) General Fiber Optical Splice Closurer is belong to the accommodate the optical fiber fusion splice section system,it widely apply for the connection of the fiber .According to the structure characture ,the fiber optical splice closure can be classified to the Horizontal and Dome type. Feature 1,The main body is made of superior engineering plastic polycarbonate materials External structural components and fastening components are made of stainless with good anti-erosion and anti-aging performance. 2,It adopts dual cable press technology to ensure there is no additional signal wastage or overheads with the cabinet. 3,Optical cable that go in or come out of the cabinet can be connected or broken off; 4,With multiplexing and expansion functions. Technical features 1,Circle numbers of insertion :max.120 2,Cable number of :max. 8-out and 8-in 3,Insertion loss:≤0.03Db 4,Max.voltage:15KV DC 5,Atmospheric pressure:defense level(EN60529):IP54,IP58; 6,Fiber-resistance level:UL94 VO 70Kpa-106Kpa. Performance condition 1,Temperature:-40∼+80 2,Relative humidity:≤85%(+30) Application Directly buried:without any hanging hook,it can be buried directly; Wall mounting:with hanging hook,it can be fixed up to the conduit; Arial hanger:with hanging hook,it can be hanged on the transmission line.
