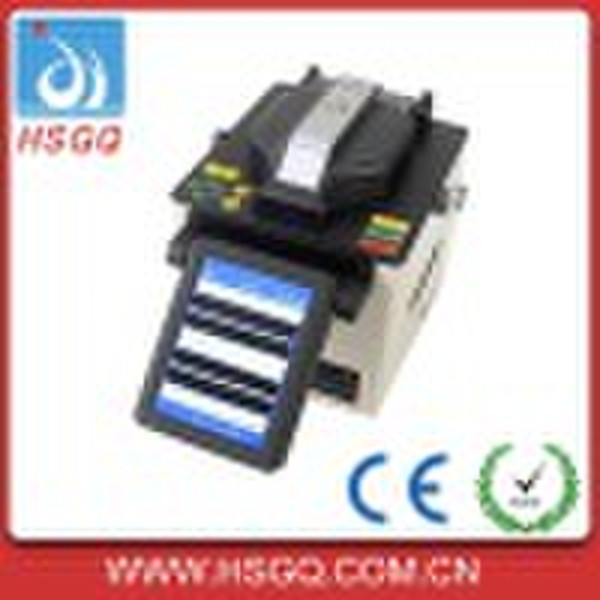

Fiber Splicer Machine

Single Fiber Fusion Splicer HSGQ 008 Features Digital Color show Simultaneous X and Y views 9Sec.splice time,40 Sec.tube-heat time. Large capacity internal battery. SYSTEM TEST guaranteens the best working condition. User items Auto check fiber end face Auto calibrate parameters Store 8100 groups of splice results. Many language options. SpecificationsApplicable fibers MM .SM ..NZ-DS. EDF. DSCoating diameter100 to 1000umCladding diameter 100 to 150umFiber cleaved length8-23mm(standard)Splicing modeAuto&ManualAverage splice loss0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)Return loss≥59dBEnvironment conditions24∼51(operation temperature).0∼96%RH(humidity),0∼5010m(altitude)Storage environment39∼81(temperature),0∼96%RH(humidity)Protection sleeve length20mm. 40mm .60mmTension test2.0N(standard)LanguageChinese, English, Spanish, Korea,Russia, etcInterfaceRS232 interface&video input voltage ,AC adaptor:85∼260V input voltagePower supplyInternal battery:12V voltage,10Ah,up to 150times of continuous splices and heats.DC adaptor:12V voltage,optional multipurpose external batteryDimensions161(W)×161(H)181(D)mmWeight4.3kg Standard package Description 1)Fusion Splicer; 2)AC power cord; 3)AC adaptor; 4)Charger; 5)Internal battery; 6)Spare electrode; 7)Fiber cleaver; 8)Manual instruction; 9)Carry case; 10)Cooling tray; 11)Fiber stripper. Optional items: DC power cord;; External battery. DC adaptor
