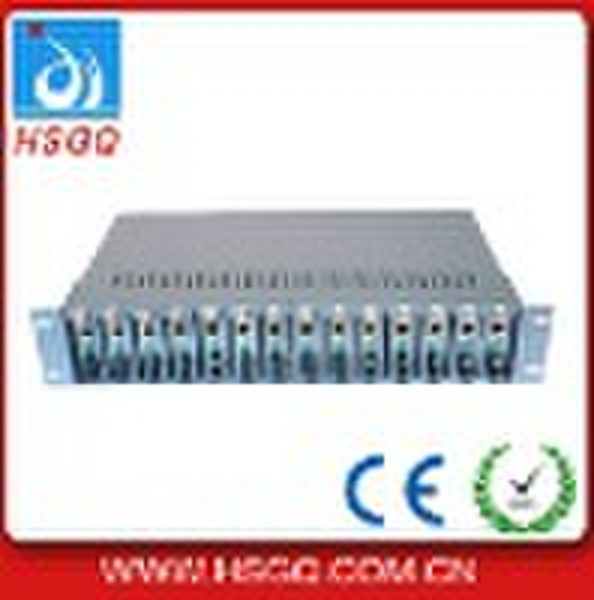

Media Converter Rack

Media Converter Rack Maximum 14 sets of 10M,100m, 1000M multimode,single mode,single core media converters and single channel video+data video optical terminals can be installed in one rack under uniform power supply.This not only reduces the number of tie wires and simplifies the structure,but also facilitates easy management and maintenace.In addition,AC 220V, DC 48V input and single power supply,double power supply are optional. Product features 1.14 slots standard 19”2U casing can be installed in the cabinet of equipment room for uniform management and maintenance; 2,Supports plug-and play of optical transceiver; 3,Well shielded power supply prevents electromagnetic signal caused by power supply from intervening the normal operation of module; 4,Optical switching power supply supports stable and long time operation ,provides over voltage and over current protection ,with ripple and noise less than 50Mv. Technical parameters 1. Amount of slots:14 slots;2. Power supply parameter:outside :5V DC,1 A; built-in :AC 100-250V,50-60Hz;3. Environment temperature : Working temperature rang :0°C 50°C;Storage temperature range:’-20°C 65°C; 4,Relative humidity:5 90%; 5,Dimension :485×245×90mm; 19”2 U height.
