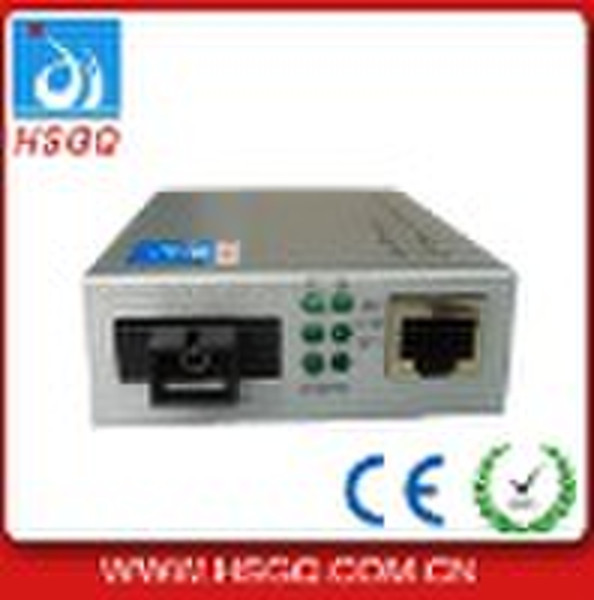

Optic Fiber Media Converter

Optic Fiber Media Converter 10/100Mbps Single Mode Simplex Fiber Media Converter (SC Connector, Transmission:20KM) Brief Description Single fiber converter of 100Mbps,10M/100M adopt the optical multiplex technology to complete the optical transmission and reception through one fiber ,saving the fiber spending.It is used in the following cases:lacking in fiber resource,hire others fiber or with one failure in function of the bi-cores fiber,and the perfect equipment for removed transmission of bandwidth network.. Product characteristics 1,Adapt wave division multiplex technology and realize the two way transmission on one fiber; 2,Reception with dual wavelength ,and it must be used in pairs in order to improve the system stability. 3,Optional modes of network management and non-network management and non-network management mode; 4,Optional power supply is 5V,1A ; 220V AC/ - 48V DC; 5,Optional (External )outlay power supply and build-in(Inner) power supply; 6,With the function of automatic recovery to prevent system halt; 7,100M,10/100M rates of single fiber receivers avaiable; 8,Maximum transmission distance is 80KM. Products SeriesTypeDescriptionWave length (nm)Transmission distance (KM)Emission power(db)Sensibility(db)Degree of saturationLoss(db)HSGQ-1000CMulti Mode RJ-45/SC13102KM-4∼-19-30-1412.5HSGQ-1000TMulti Mode RJ-45/SC13102KM-4∼-19-30-1412.5HSGQ-1000S25(your sample)Singe Mode RJ-45/SC131025KM-7∼-15-34-816HSGQ-1000S40Singe Mode RJ45/SC131040KM-7∼-15-34-516HSGQ-1000S60Singe Mode RJ-45/SC131060KM-5∼0-38-330
